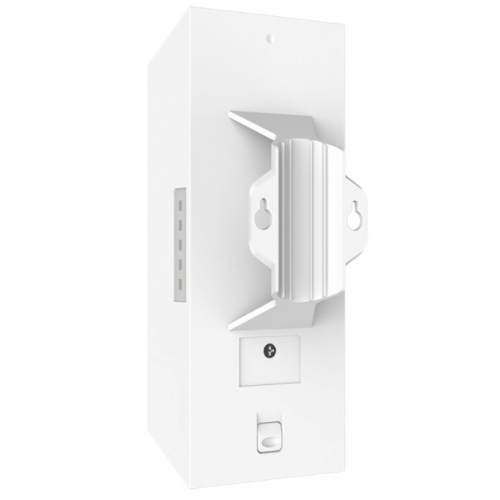

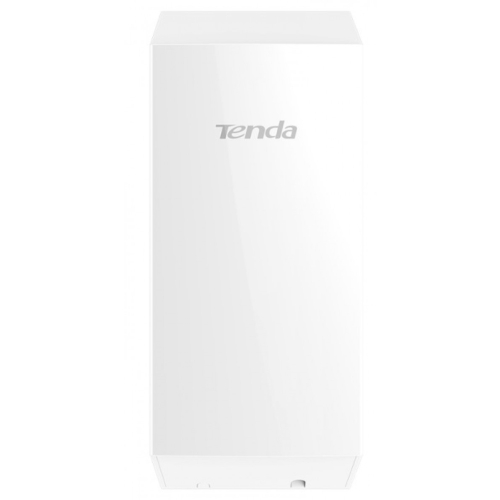

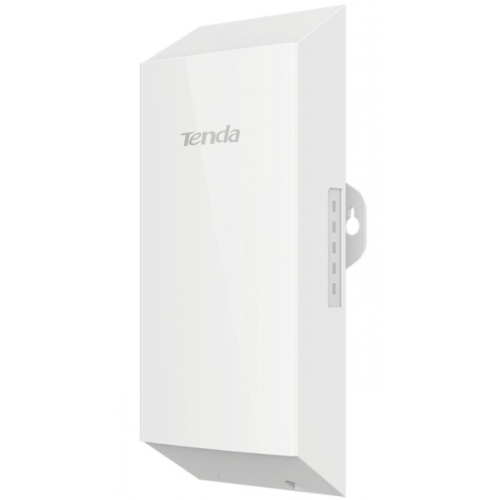

O1 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 8dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.• 2.4GHz 11n 300Mbps• 8dbi directional antenna• IP65 waterproof enclosure• AP,Station,WISP operating mode supported• Up to 30 meters of flexible deployment with included PoE Injector500m+ Wireless Data TransmissionO1 integrates with a 8dBi directional antenna to provide an optimized transmission quality. It picks up and maintains a stable signal for a wireless network connection ranging up to 500 meters.O1 adopts of auto-bridge technology,two cpe can connect to each other when you power on them face to face. It is very easy to setup.Professional Outdoor DesignEquipped with IP65 waterproof enclouse and high quality hardware design, O1 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment .Multiple Application ScenariosLong-Distance Wireless ConnectionOne work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission.WISP(Client+Router) ModeWirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.Smart Signal Indicator LEDThree signal LED Lights represent the currently signal strength that O1 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance.Dimension 193.5*80*67.5mmDeployment Pole Mount/Wall MountApplication Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV SurveillanceFrequency Range 2.4GHzCompliant Standards IEEE 802.11b/g/nMaximum Wireless Rate 300MbpsInterfaces 1*10/100Mbps Ethernet PortAntenna Polarization Dual PolarizationAntennas Gain 8dbiAntenna Beamwidth Horizontal: 60° Vertical: 60°GND /1*Reset ButtonPower Consumption 2.6WWaterproof Level IP65LED Indicator PoE/LAN,WiFi, LED1,LED2,LED3Power Method 9V0.6A Passive PoE / 9V0.6A DCLightning Protection /Passive PoE Passive power over ethenet via PoE/LAN (+4,5pins-7,8pins)Voltage range: 9-13.8V DCReception Sensitivity11b 1Mbps -92dBm±1.5dBm11n MCS0: -92±1.5dBm11n MCS7: -72±1.5dBmOperating mode: AP/Station/WISPEnable/Disable Wireless Radio: SupportSSID Hidden: SupportWireless Client isolation: SupportSSID Isolation: SupportChannel Bandwidth: 20/40MHzChannel Shift: /Wireless Access Control: SupportWeak Signal Client Limitation: SupportTransmission Power: Adjustable power by 1dBmWMM Capable: SupportAPSD Capable: SupportWireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2Transparent Bridge: SupportVLAN Tagging for SSID: SupportDHCP Server: SupportVPN Pass-Through: PPTP,L2TPRemote Web access: SupportSchedule Reboot: SupportPage Timeout: SupportPing Watchdog: SupportDyndns: noip, dyndns.orgNetwork Diagnoses: Ping, Traceroute, Signal ScanTime: SupportFirmware upgrade: SupportBackup/Restore Configuration: SupportUsername Managerment: SupportSystem Logs: SupportManaged By Controller: PC Software CPE AssistantPackage Contents1*2.4GHz 11n 8dBi 300Mbps outdoor CPE O11*Power Adapter1*PoE Injector1*Quick Installation GuideOperation Temperature -30? ~55 ?Storage Temperature -40? ~ 70?Operating Humidity 10%~90% non-condensingStorage Humidity 10%~90% non-condensingDefault login IP 192.168.2.1Default Login Username: adminDefault Login Password: adminCertification: FCC/CE/RoHS
