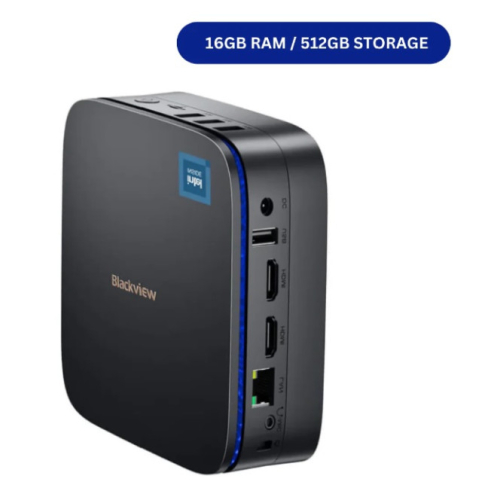

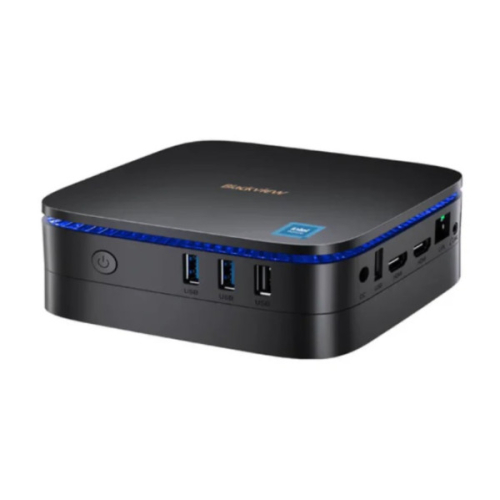

BlackView MP60 Intel N150/16GB/512GB/2xHDMI/2xUSB 3.0/1xRJ45/BT/WiFI/W11P Black
|
|
Product Appearance
|
|
|
|
Type
|
Spec.
|
Standard Configuration
|
|
Product
|
Product Type
|
MINI PC, Ad Terminal Box
|
|
|
Dimension
|
128mm*128mm*52mm
|
|
|
Case Material
|
Plastic
|
|
|
Weight
|
Net Weight 390g，Gross Weight 870g
|
|
System Hardware Configuration
|
|
|
|
Type
|
Spec.
|
Description
|
|
CPU
|
Model
|
Intel Jasper Lake N150
|
|
|
Max. Turbo Speed
|
3.6 GHz
|
|
|
Power Consumption
|
10W
|
|
Memory
|
Model
|
LPDDR4
|
|
|
Capacity
|
16GB on Board
|
|
Storage
|
SSD
|
512GB（M.2 2280 NGFF SSD
|
|
|
2.5'' SSD
|
2.5 SATA Port SSD/HDD, Max 2TB
|
|
TPM
|
CPU integratesTPM
|
Support TPM 2.0
|
|
Double Display
|
Video Output
|
HDMI1 + HDMI2 Double Display
|
|
LED
|
State
|
Blue light- Swith on Red light- Machine dormancy
|
|
Internet Connection
|
|
|
|
Type
|
Spec.
|
Description
|
|
WIFI
|
Model
|
intel 7265/ 3165/ RTL8821CE On Board
|
|
|
Protocol
|
IEEE 802.11 a, b/g, n, ac
|
|
Bluetooth
|
Model
|
intel 7265/ 3165/ RTL8821CE On Board
|
|
|
Protocol
|
Support Bluetooth 4.2
|
|
3G
|
Built-in
|
No
|
|
4G
|
Built-in
|
No
|
|
Ethernet
|
LAN1
|
10M/100M/1000M Self-adaption
|
|
I/O
|
|
|
|
Type
|
Spec.
|
Description
|
|
USB
|
USB2.0
|
USB2.0 Type-A*2
|
|
USB
|
USB3.0
|
USB3.0 Type-A*2
|
|
TF
|
Expansion Memory
|
No
|
|
HDMI
|
AV Output
|
HDMI 1.4b Type A x2
|
|
VGA
|
Video Output
|
No
|
|
RJ45
|
Gigabyte Ethernet
|
RJ45 x1
|
|
Uart
|
Data Transmission
|
No
|
|
POWER
|
Power Button
|
x1
|
|
DC IN
|
Power Supply Input
|
5.5/2.1mm DC Jack x1
|
|
Audio-in/out
|
Audio-in/out
|
3.5mm Phone Jack x1 （Two-in-one interface）
|
|
Antenna1
|
FPC Antenna
|
WiFi 2.4+BT x1
|
|
Antenna2
|
FPC Antenna
|
WIFI 5.0
|
|
SIM
|
Micro SIM
|
No Supporting
|
|
Software Configuration
|
|
|
|
Type
|
Spec.
|
Description
|
|
OS
|
Version
|
Win11 pro
|
|
Environment
|
|
|
|
Type
|
Spec.
|
Description
|
|
Environment
|
Working Temperature
|
0~40℃
|
|
|
Memory Temperature
|
-20~60℃
|
|
|
Humidity
|
90% @ 40 °C (No Condensation)
|
