TC neo 50q G4 Tiny i3-1215U/8GB DDR4/M.2 256GB/GLAN/WLAN/BT/HDMI/DP K+M 3Y
|
|
Processor
|
Intel Core i3-1215U, 6C (2P + 4E) / 8T, P-core 1.2 / 4.4GHz, E-core 0.9 / 3.3GHz, 10MB
|
|
Graphics
|
Integrated Intel UHD Graphics
|
|
Chipset
|
Intel SoC Platform
|
|
Memory
|
1x 8GB SO-DIMM DDR4-3200
|
|
Memory Slots
|
Two DDR4 SO-DIMM slots, dual-channel capable
|
|
Max Memory
|
Up to 32GB DDR4-3200
|
|
Storage
|
256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
|
|
Storage Support
|
Up to two drives, 1x 2.5" HDD + 1x M.2 SSD
• 2.5" HDD up to 1TB
• M.2 SSD up to 1TB
|
|
Card Reader
|
No card reader
|
|
Optical
|
None
|
|
Audio Chip
|
High Definition (HD) Audio, Realtek ALC256 codec
|
|
Speakers
|
2Wx1
|
|
Microphone
|
No microphone
|
|
Power Supply
|
65W 89% Adapter
|
|
Keyboard
|
USB Calliope Keyboard, Black, Slovenian
|
|
Mouse
|
USB Calliope Mouse, Black
|
|
Optional Bay
|
2.5" HDD Bracket
|
|
Expansion Slots
|
Two M.2 slots (one for WLAN, one for SSD)
|
|
Case Color
|
Black
|
|
System Fan
|
1x System Fan
|
|
Stand
|
None
|
|
Adapter Cage
|
None
|
|
Toolless Chassis Screw
|
Toolless Chassis Screw
|
|
Mounting
|
1x VESA Mount
|
|
Pen
|
Pen Not Supported
|
|
Form Factor
|
Tiny (1L)
|
|
Dimensions (WxDxH)
|
179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
|
|
Weight
|
Around 1.11 kg (2.45 lbs)
|
|
WLAN + Bluetooth
|
Intel Wi-Fi 6 AX201, 802.11ax 2x2 + BT5.2
|
|
WWAN
|
Non-WWAN
|
|
Ethernet
|
Integrated 100/1000M
|
|
Front Ports
|
1x USB-C 3.2 Gen 2 (support data transfer and 5V@0.9A charging)
1x USB 3.2 Gen 2 (Always On and 5V@2.1A charging)
1x headphone / microphone combo jack (3.5mm)
|
|

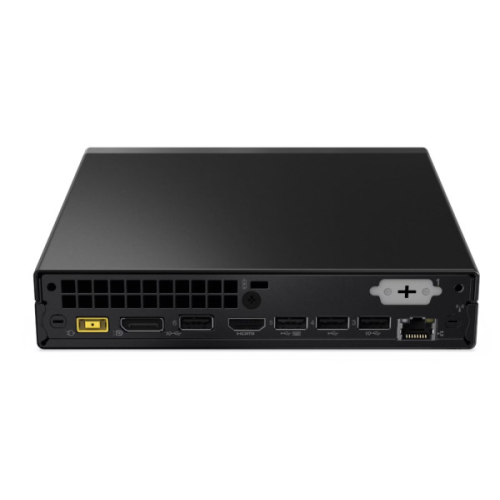

Rear Ports
|
2x USB 2.0
2x USB 3.2 Gen 2
1x HDMI 2.1 TMDS
1x DisplayPort 1.4
1x Ethernet (RJ-45)
|
|
Monitor Cable
|
None
|
|
Security Chip
|
Firmware TPM 2.0 integrated in SoC
|
|
Physical Locks
|
Kensington Security Slot, 3 x 7 mm
|
|
Chassis Intrusion Switch
|
Chassis Intrusion Switch
|
|
Green Certifications
|
ErP Lot 3/7
RoHS compliant
TCO Certified 9.0
|
|
Operating System
|
None
|
