| Tip procesora |
AMD |
| Podnožje |
AMD® AM4 |
| Čipset |
AMD® A320 |
| Format ploče |
Micro ATX |
| Podržani procesori |
-AMD A-series APU/Ryzen CPU/NPU for Socket AM4
-Maximum CPU TDP (Thermal Desing Power) : 95W
|
| Podržana memorija |
DDR4 |
| Memorija |
-Support Dual Channel DDR4 2933/2667/2133/1866 MHz
-Support Non-ECC & ECC Un-buffered DIMM Memory modules
-2 x DDR4 DIMM Memory Slot
-Max. Supports up to 32GB Memory
-DDR4 2933 for AMD Ryzen CPU
|
| Slotovi za proširenje |
-1 x PCI-E 3.0 x 16 Slot (x16 for Ryzen CPU only, NPU/APU run at x8 speed)
-2 x PCI-E 3.0 x1 Slots
|
| Storage |
-4x SATA III Connectors
-Support SATA RAID : 0,1,10
|
| Mrežna karta |
Realtek RLT8111H-10/100/1000Mb/s Contoller
|
| Zvučna karta |
-Realtek ALC887 8-Channel HD Audio |
| USB |
-2x USB 3.1 Gen1 Ports
- 1 x USB 3.1 Gen1 Header
- 4 x USB 2.0 Ports
- 2 x USB 2.0 Header
|

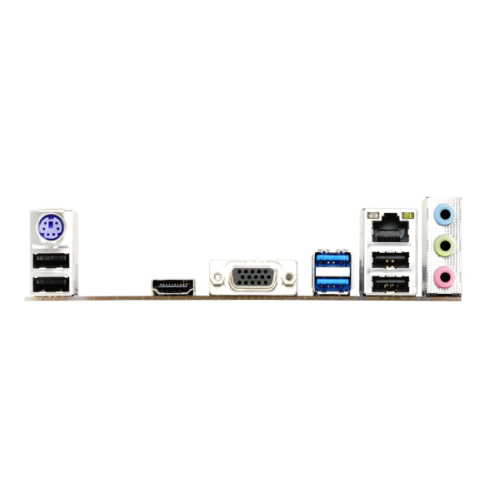

| Konektori na zadnjoj strani |
- 1 x PS/2 Keyboard/Mouse
- 2 x USB 3.1 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz
- 1 x VGA Port, resolution up to 1920 x 1200 @60Hz
- 1 x LAN port
- 3 x Audio Jacks
|
| Interni konektori |
-1 x USB 3.1 Gen1 Header
- 2 x USB 2.0 Headers
- 4 x SATA3 6Gb/s Connectors
- 1 x Front Audio Header
- 1 x Front Panel Header
- 1 x CPU Fan Connector
- 1 x System Fan Connector
- 1 x COM Port Header
|
| Dimenzije |
22,6 x 18,8 cm |
