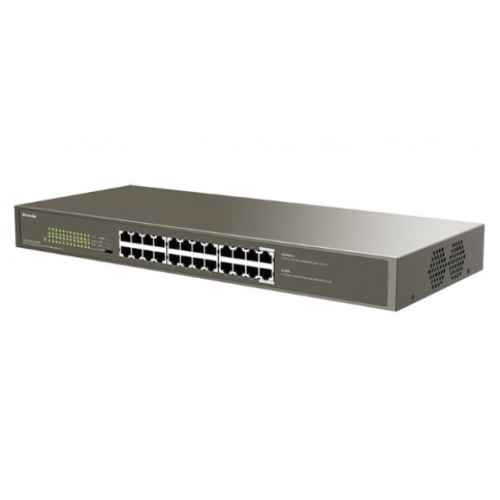

TEG1124P-24-250W je Tenda PoE switch koji nudi 24 10/100/1000 Mbps Base-TKS RJ45 portova. Portovi 1-24 su u skladu sa IEEE 802.3af standardom (maksimalna PoE snaga: 15,4W) i 802,3at standardom (maksimalna snaga PoE: 30W). Switch nudi maksimalnu izlaznu snagu od 225W i može da napaja i razmenjuje podatke sa AP, IP kamerama i IP telefonima preko CAT5 kablova. Omogucava i jednostavne nacine upravljanja kao što su CCTV, VLAN i izolacija kako bi se smanjili troškovi kablova IP terminala kao što su AP i IP kamere.Standard&Protocol: IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/IEEE 802.3af/IEEE 802.3atIndicator: 24*Link/Act per device24*PoE per device1*Power per deviceInterface: 24 10/100/1000Base-T ports(Data/Power)Lightning Protection: 6KVStore & Forward: Yesexchange capacity: 48 GbpPacket Forwarding Rate: 35.6MppsRAM Data Buffer: 4MbMAC Address Table: 4KPoE supply management: Port 1-24 support IEEE802.3at/af PoE standardPoE through pin1 2 4 5 +/3 6 7 8 -Input Power AC: 100-240V~50/60HzDimension: 440*178*44mm( W x D x H )Power Consumptionin full con guration: <250WPoE Max Power Supply: 225WPort Features: Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.CCTV: the port cache is optimized and PoE ports 1-8 have higher prioritiesover the other ports. All the ports of the switch can communicate with each other.VLAN: ports 1 to 22 are isolated from each other, but can communicate with ports 23 and 24(uplink ports) respectively.Isolation: ports 1 to 12 and Ports 13 to 24 belong to two di erent VLAN.This mode can be used to isolate supervision network and wireless network to make them not interfere with each other.Environment: Operating Temperature: 0?~40? (32?~104?)Storage Temperature: -40?~70? (-40?~158?)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
